Rapid Deployment Systems

Accommodation Shelters

Temporary Accommodation and Medical Operations

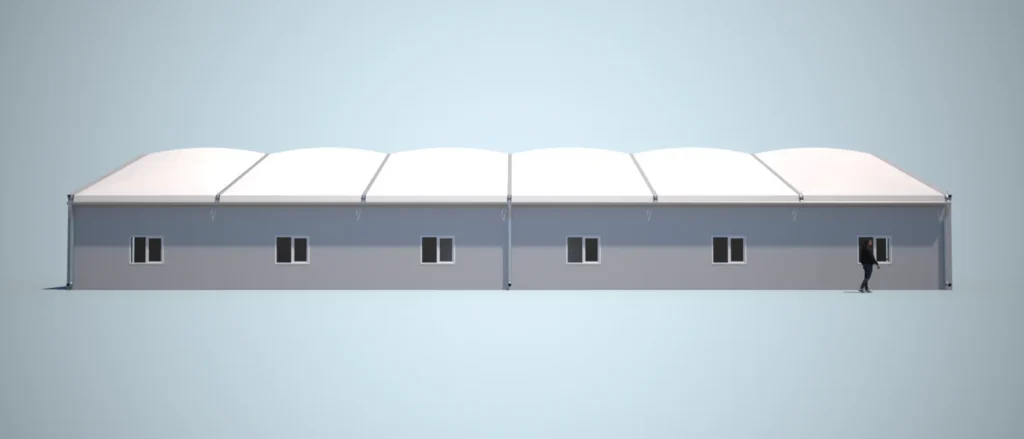

The 12m x 30m ICE module is our solution for temporary accommodation, medical stations, and evacuation facilities. With an area of 360m², a clearly structured room layout and integrated building services, this structure provides comfortable mobile operations support quickly and efficiently.

Applications

Emergency shelters in crisis and disaster situations
Mobile medical care stations
Quarantine and isolation units
Expansion of existing clinic or camp infrastructure
Staff accommodation for overseas assignments or disaster control

Technical Information

360m² floor space
3.3m side height
12 cabins measuring 5m x 5m
2m central aisle
One 1m x 2m door per cabin
One 1m x 2m window per cabin
Two glazed double doors
Thermoplane roof with integrated insulation
60mm thick vertical sandwich panel external walls
60mm thick sandwich panel interior partition walls

Features

Sandwich panel walls and thermal roof provide thermal and acoustic insulation
Power supply to each cabin with 230V European power and USB sockets
Air conditioning and heating including modern control technology
Lighting with emergency exit signage
Integrated gutter rainwater management
Wide glass entrance doors

Optional Accessories

Sanitary container for medical use
Modular expansion units for adding rooms
Foundation solutions and floor connection on request
