Rapid Deployment Systems

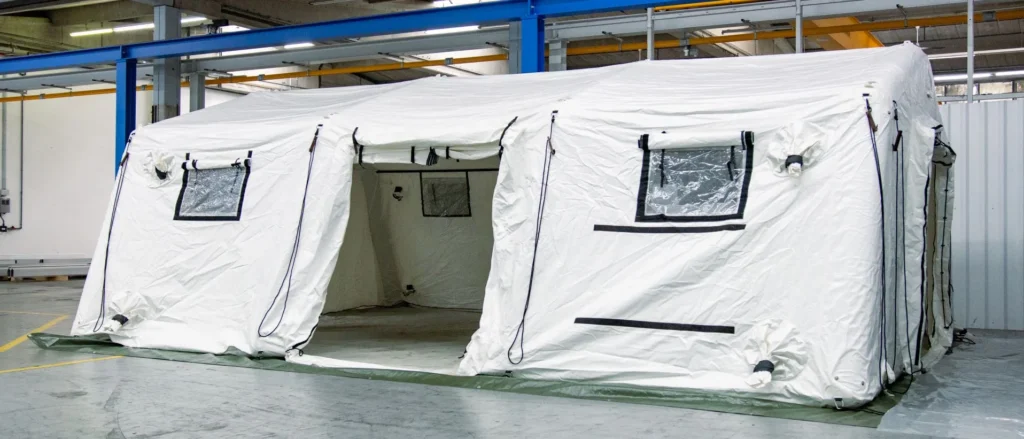

Inflatable Rescue Tent MZI 42

Mobile Emergency Inflatable Rescue Tent For Fast Deployment Medical Treatment And Humanitarian Aid In Extreme Situations

This high-performance tent provides a usable area of 42m² for medical emergency operations, evacuation measures or emergency accommodation.

The tent suits high traffic emergency applications thanks to its size, four entrances, robust construction, and versatile expansion options.

Applications

First aid tent for natural disasters, accident scenes, war-zones
Mobile medical station for large-scale emergencies
Recreation tent for emergency and rescue personnel
Medical treatment tent at large events
Protective structure during severe weather conditions or evacuations

Technical Data

The erected tent is 7.55m long x 5.6m wide x 2.8m high
Interior height is 2.5m
Packed size is 1.3m x 1.1m x 0.75m
The tent weighs 195kg (169kg without accessories)
Operating pressure is between 0.19 and 0.21bar
Usable temperature range is from –30°C to +70°C
Four 1.8m x 1.9m entrance doors (one on each side of the tent)
Four separate air chambers ensure maximum tent stability
Up to four triple layer windows (insect screen, clear film, fabric cover)

Advantages

One entrance on each side for maximum accessibility.
The weatherproof and durable tent is flame-retardant and waterproof with a non-slip floor.
Quick installation can be achieved using a blower or compressed air in any location.
Four air chambers with overpressure and inflation valves prevent tent deflation.
Wide range of connections includes eight heating sleeves (Ø 0.4m) and four hose/cable bushings (Ø 0.15m).
Expandable and adaptable emergency tent with options including partition curtains, windows, insulating liners and more.

Equipment and accessories

Equipment Included

24 anchor pins and hammer
Repair kit
Transportation and storage bag

Optional Accessories

Partition curtains for flexible room division
Three layer windows deliver protection and light at the same time
Optional water-filled ballast bags for use in windy locations
Insulation liner and medical sanitary lining coming soon
