Rapid Deployment Systems

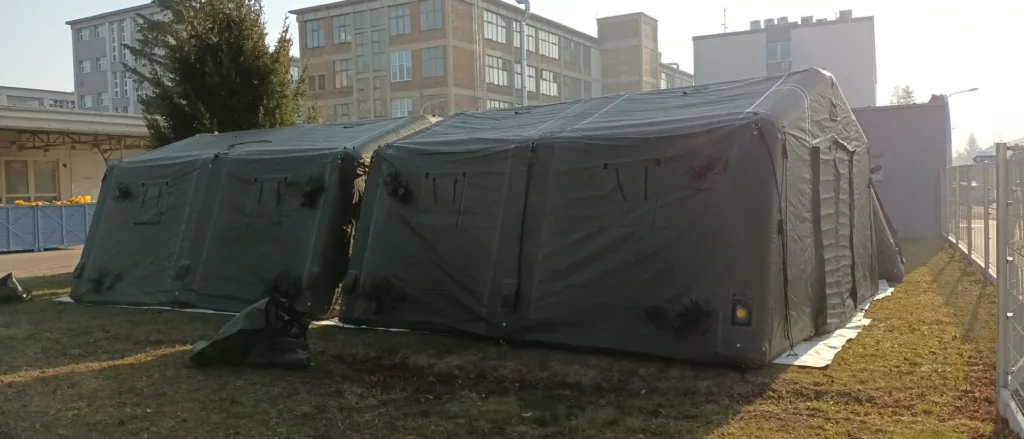

Inflatable Rescue Tent MZI 39

Large-Scale Rapid Deployment Structure For Medical Services, Command Centres, And Emergency Shelters

Designed for demanding scenarios where space, flexibility, and speed are crucial the MZI 39 provides a usable internal area of 39m². Whether it’s used as a medical station, temporary accommodation or command centre, the tent quickly provides cover and protection to vulnerable populations.

Applications

High-capacity emergency shelters for up to 12 camp beds
Field medical and treatment tents
Accommodation for emergency services and support teams
Command posts and command centres
Technical and logistics tents for large-scale events
Modular connection with other tent systems (e.g. HF-28A.3)

Technical Data

Erected tent’s external dimensions are 7.92m long x 5.6m wide x 3m high
2.65m internal height
Packed size is only 1.45m x 1.1m x 0.9m
Weight = 239kg including accessories
Inflated operating pressure range from 0.19 – 0.21bar
Operating temperature range from –30°C to +70°C
Structural tent frame tubes are 0.35m diameter
Four 1.8m x 2m entrance doors
Four triple-layered windows with insect screen, clear film and tent skin

Advantages

39m² interior space gives enough space for medical operations or large teams.
Single air chamber system with four inflation valves makes the tent quick to erect.
The extremely durable MZI 39 is flame-retardant, waterproof and UV-resistant with an operational temperature range from –30°C to +70°C.
Optimal ventilation through windows, ventilation slots and four doors.
Eight heating connections (Ø 0.4m) and four cable/hose feed-throughs (Ø 0.15m).
Optional expansion extras include connecting tunnel, insulation and sun protection.

Equipment and accessories

Equipment Included

20 anchor pins and a hammer
Repair kit with valves, screws, adhesive kit, etc.
Hand pump
Transportation bag
